Calculation Modules for Overhead Conductors
Each module combines conductor data with operating, environmental or fault inputs and presents the results in a reviewable engineering report.
- Sag & Tension AnalysisCompare sag, horizontal tension and support tensions across temperatures and ice or wind loading cases.Learn more
- Conductor AmpacityEvaluate the steady-state heat balance for a target conductor temperature and environmental conditions.Learn more
- Short-Circuit Mechanical EffectsSeparate reports for flexible slack conductors, flexible strained conductors and droppers.Learn more
- Short-Circuit Thermal EffectsCompare the thermal demand of a fault scenario with the conductor's short-time withstand capability.Learn more
- Conductor DataConductor dimensions, cross-section, mass, resistance and material properties used across calculations.Learn more
ConductorPro includes calculations based on IEEE and IEC methodologies: steady-state ampacity in accordance with IEEE Std 738-2012, short-circuit mechanical effects in accordance with IEC 60865-1:2011 and IEC 60865-2:2015, and short-circuit thermal effects with reference to IEC 60865-1, IEC 60865-2 and IEC 60909-0:2021.
One Engineering Workflow
From conductor data to an exportable engineering report.
Select Your Conductor
Start from conductor dimensions, cross-section, mass, resistance and material properties.
Enter the Study Inputs
Add the operating, environmental or fault inputs for the case, such as temperatures, ice or wind loading, weather conditions, or short-circuit current and duration.
Run the Calculation
Calculate sag and tension, steady-state ampacity, or short-circuit mechanical and thermal effects.
Review & Export
Review the inputs, intermediate values and results, then export an engineering report.
Why Engineering Teams Use ConductorPro
Built for engineers working on transmission lines, substations and overhead conductor systems.
Studies in One Workflow
Sag and tension, steady-state ampacity, and short-circuit mechanical and thermal studies share the same conductor data.
Transparent Calculations
Reports show the inputs, intermediate values and results behind each calculation, so the method can be traced and reviewed.
Exportable Engineering Reports
Each study can be exported as a report to support engineering review and project documentation.
What a calculation report shows
Inside the ConductorPro Modules
A closer look at what each calculation module works with and reports.

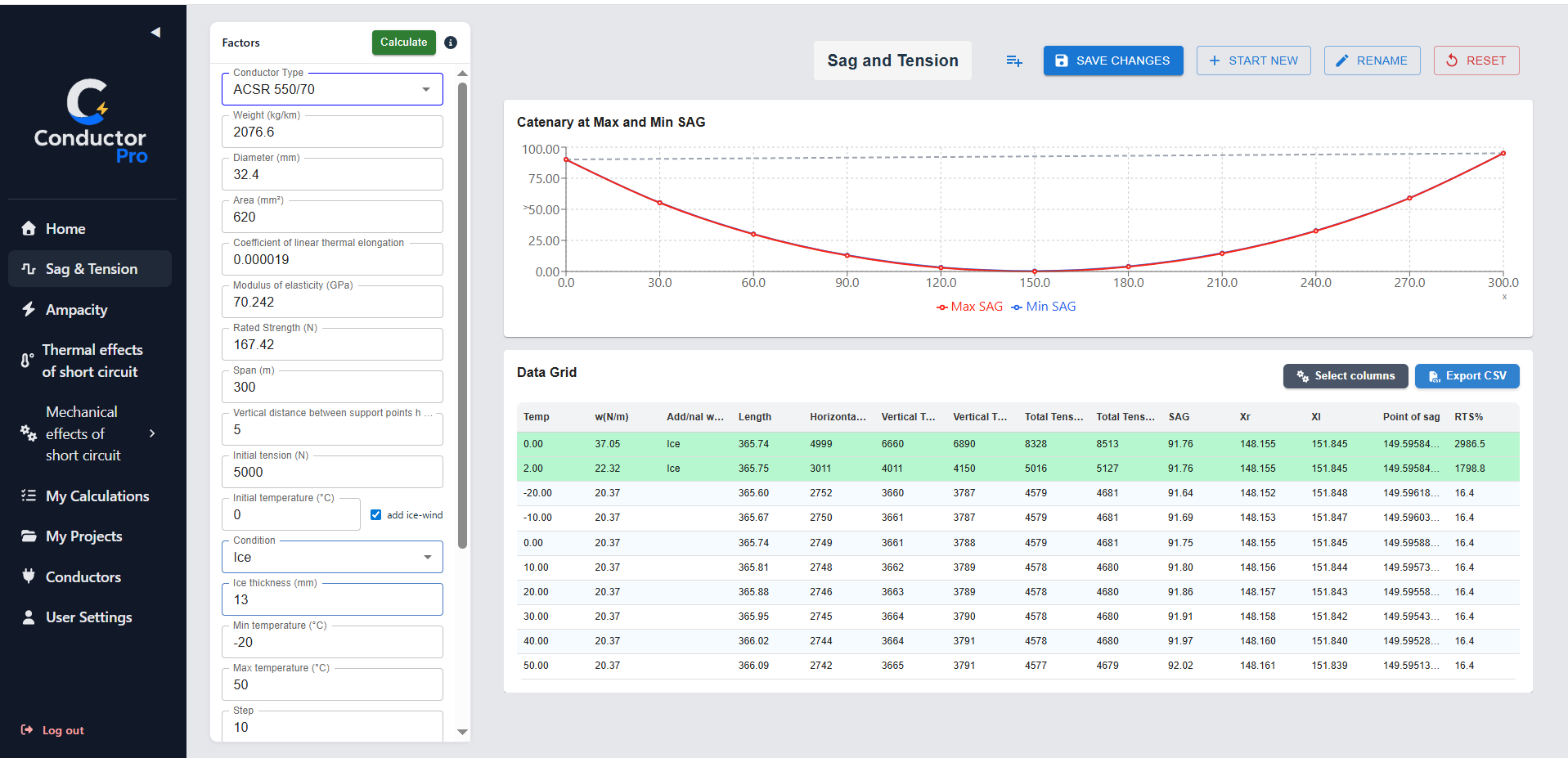

Sag and Tension Analysis
Compare sag and tension results across operating temperatures and additional ice or wind loading cases, with results that can be reviewed and exported.
- Results across operating temperatures
- Separate ice and wind loading cases
- Horizontal tension and support tensions
- Sag and position values
- Exportable results
